Using Real-World References for Realistic Renders

How You Can Use Real World References to Craft Your Masterpieces.

In this tutorial, we're going to explore how to use references to create more realistic worlds.

In this article, you'll learn:

• How to accurately create shaders to mimic car paint
• Improve the look of wet roads
• Create believable plant shaders
• Improve rust shaders
• Create realistic ice, water, and snow

In addition to the video, we've created a custom PDF with these tips so you never have to search for answers. Download the free file below so you can follow along, and for your future reference.

{{lead-magnet}}

We think that because we live in reality, we know what different materials should look like. That’s often far from the truth when we’re pressed to recreate them in 3D. From reflections to subsurface scattering, its the finer details that really bring your creations to life.

For example, let’s take a look at this flying car in my cyberpunk scene.

It looks pretty good, and if we didn’t look at references, we might just stop here. But upon further inspection, it’s pretty clear that cars are much more reflective than this, and that’s due to the clear coat on top of the paint.

We can create a blend material and just have a mirror surface that we mix into the paint layer with a falloff node. So far so good, but if we look closely at the underlying layer of real car paint, there’s another property going on here, which is that the paint often sparkles and reflects light at all different angles.

To recreate this effect, there are normal maps known as flake maps which just allow the light to reflect at a ton of different angles. Once we add that in, this is what we get, and this resembles a car paint much more closely.

Few things look as cool and cinematic as a road after the rain. Let's say you're tasked creating some wet asphalt. You've successfully mixed between a perfectly shiny version of the pavement and a rough version, but something seems off. If we look at photos of wet pavement, often there’s more of a sheen and a transition between the wet and dry areas. So just by taking our mask that’s mixing between the two materials, and using it in the bump channel, we get a much more realistic result.

Plants can be tricky too. There are many tools and assets we can use, but the scenes often feel plastic and unrealistic. Take a look at references of leave in the sun. Because they’re so thin, light comes through to create different shades and textures. Let’s add in a diffuse texture into the transmission channel, and if we’re in Pathtracing mode—which allows for true Global Illumination—this will look even better.

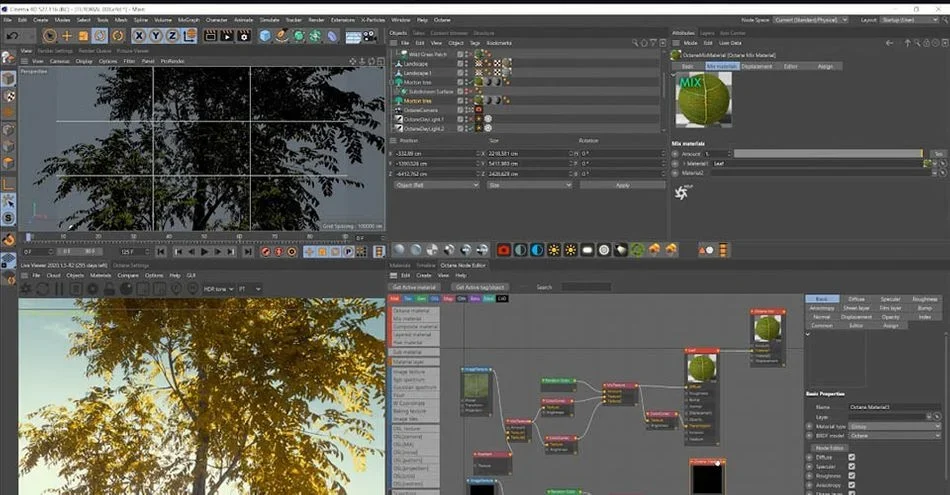

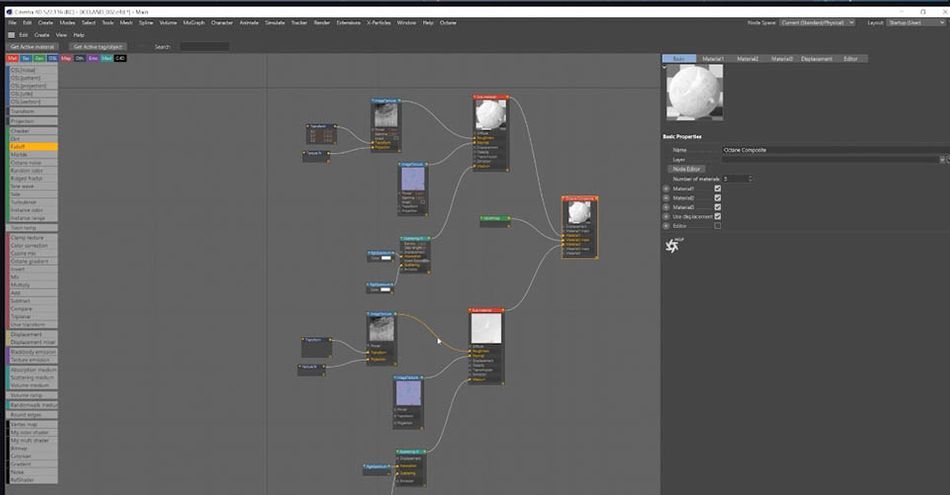

Leaves are often very waxy and have a glossy component, and if we look at a few images we’ll see that they can be super shiny. Let’s try to match that. If we create a composite material, we can do a 50% blend between a glossy version of the leaf and a transmissive version. Or even easier, with the Octane universal material, we can get all of that in one go without having to create a mix between two materials.

As we've talked about before, adding in natural wear and tear to your assets and materials adds realism. When looking at images of real rust, the rusty sections are very rough or diffuse, and block the shininess of the metal. If we make sure the rusty material has almost no reflection, we’re in a much better spot.

Finally, let’s look at this scene with ice, water, and snow. The water looks pretty good as I’ve added in a bump to create some ripples, but if we look at a shot of the real ocean, it’s clear that water of different depths has different colors, and that’s due to the absorption. We need two things: actually add in the absorption component, and to create a surface underneath the water.

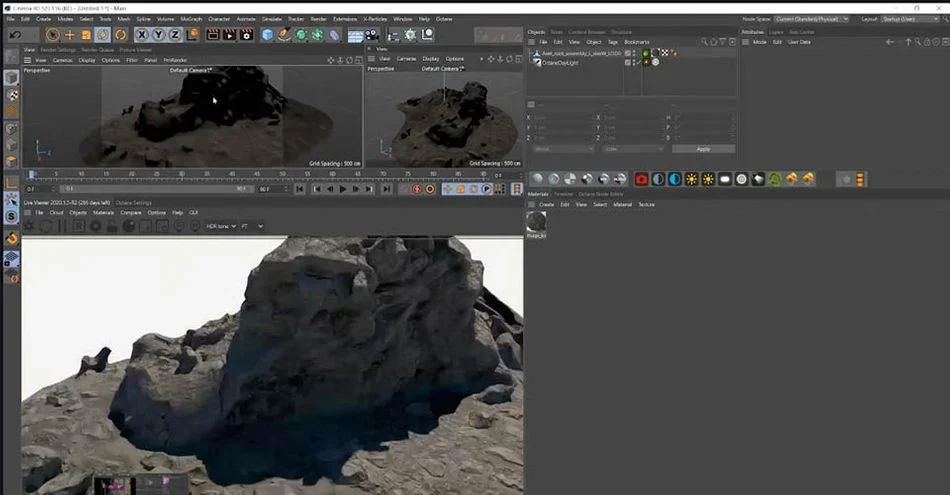

Next, let’s dial in the ice, and for this I’ve added in a bunch of Megascans rocks. Now if we just use the same material as the water, we’ll be a bit closer, but it’s overly see-through. We need the ice to look more cloudy like our references. So instead of an absorption medium, let’s try a scattering medium, with a blue color in the absorption.

Now we’re looking icy. Let’s also add in a cracked black and white map to the roughness, so that gets a bunch more detail, as well as a normal map for rocks, to create even more surface detail.

For the snow, we can use a similar design path as we did for the car's paint above. By using the flake map, we achieve a realistic shimmer effect as the sun hits millions of individual snowflakes. Now we've got a fairly realistic iceberg.

Every artist you've ever admired studied references. It is a fundamental skill that will make you a better designer. Learn how materials react to different light sources, and how subsurface scattering changes the shade and texture of everyday objects. You're well on your way to making some incredible renders.
